Chart Summarizer
Vizlib Chart Summarizer generates summaries of your chart data to provide quick insights. Chart Summarizer is available for the following Vizlib extensions:
- Bar Chart
- Flow Chart
- Pie Chart
- Ridgeline Plot
- Waterfall
Enable Chart Summarizer
Before you enable Chart Summarizer, make sure that the following prerequisites are fulfilled:
- You have enabled the Use AI option in Property Panel > AI.
- You have acknowledged the AI Usage Policy. You can find AI policy in Property Panel > AI Usage Policy. Confirm reading the AI Policy by clicking the Acknowledge Policy button.
- You have enabled the Extended Context Menu option in Property Panel > Interactivity.
- The Disallow AI usage on organization level property in User Portal > Account > Settings is disabled.
To enable Chart Summarizer, do the following:
- Navigate to Property Panel > Chart Summarizer.
- Click the Enable Chart Summarizer checkbox.
You have enabled the Chart Summarizer. The software adds the Chart Summary option to the extension Context Menu available on right-click.
Use Chart Summarizer
To use Chart Summarizer, follow these steps:
- Right-clik on the extension you want to summarize. The software displays context menu.
- From the context menu, select the Chart Summary option. The software displays a pop-up where the summary is available.

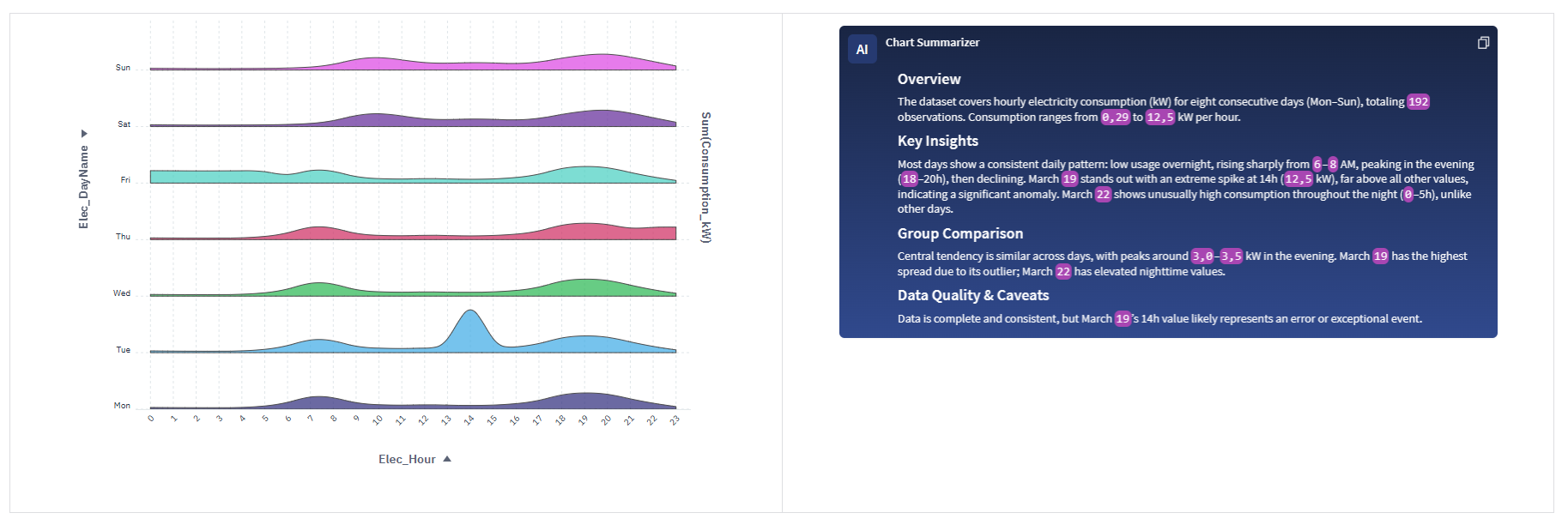

Sample Chart Summary for Vizlib Ridgeline Plot

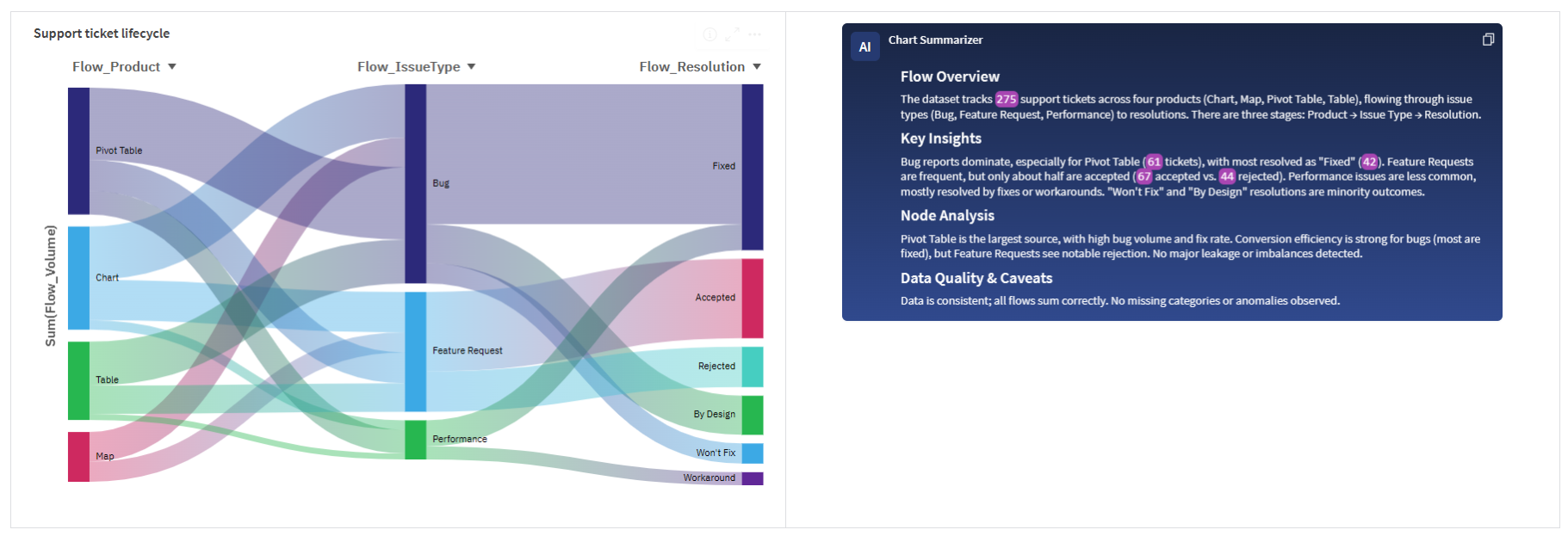

Sample Chart Summary for Vizlib Flow Chart
