Combo Chart Setup Wizard

Vizlib Combo Chart has a Setup Wizard to help you create a visualization quickly and easily (Figure 1). It's activated when you add a Vizlib Combo Chart object from the Custom Objects menu to a sheet.

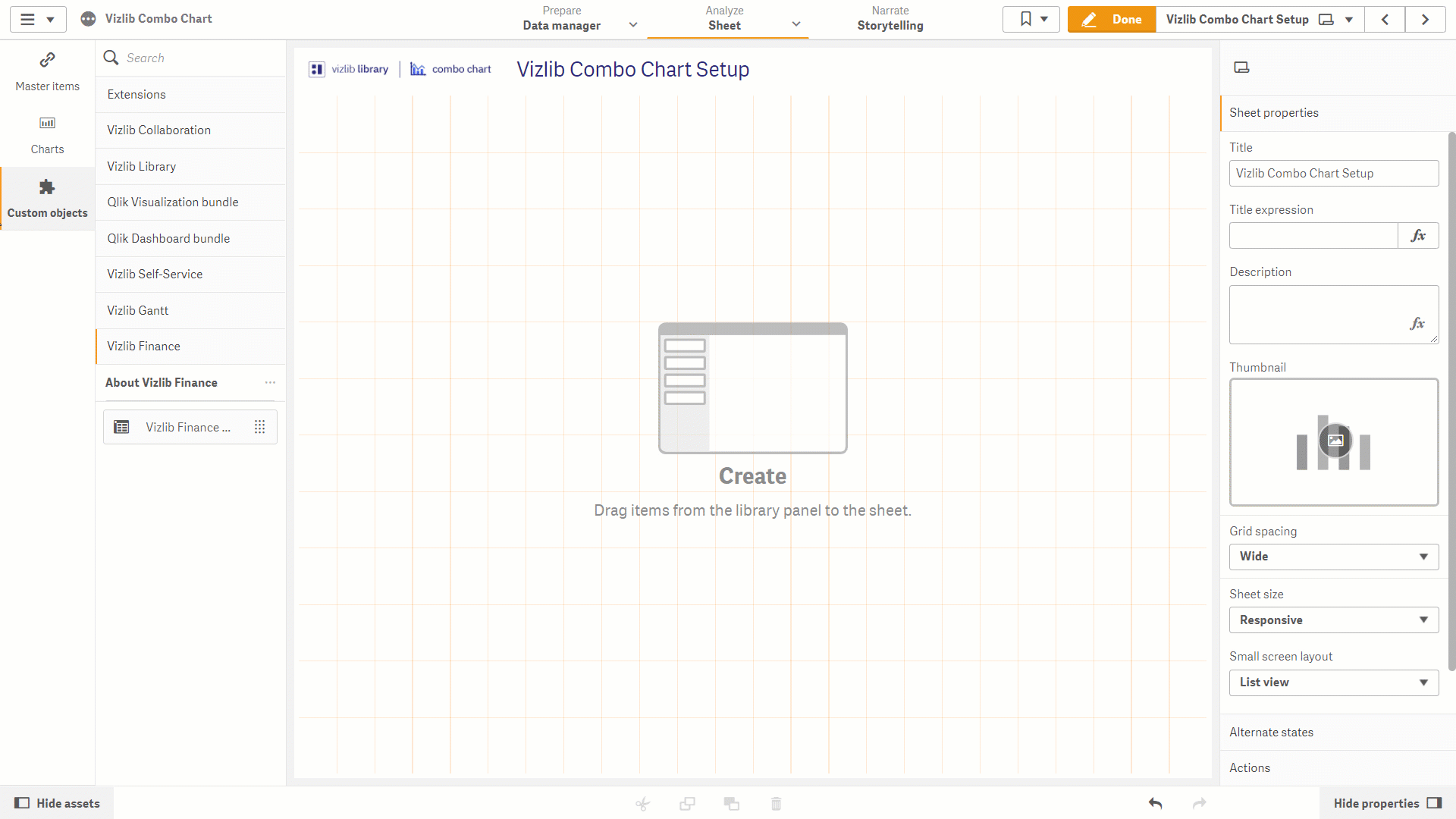

Figure 1: Setup Wizard

If you want to use the Setup Wizard, follow these instructions:

• Click on Custom Objects in the far-left panel, to open the custom objects menu.

• Select Vizlib Combo Chart.

• Click and hold the cursor on Vizlib Combo Chart.

• Drag and drop the cursor into the sheet.

• Drag the table edge (highlighted in orange) to change the table size.

• Click Add Dimension and select a dimension from the list.

• Click Add Measure and select a dimension from the list.

• Use the Data section of the property panel to add second and third measures, and alternative dimensions if you need them.

• Click on Done to close edit mode and view your chart.

Once you've finished setup, you can edit the combo chart settings in the property panel.
