Mekko Chart Setup Wizard
Vizlib Mekko Chart has a Setup Wizard to help you create a visualization quickly and easily.
This topic contains the following sections:
Setup Wizard
It's activated when you add a Vizlib Mekko Chart object from the Custom Objects menu to a sheet (Figure 1).

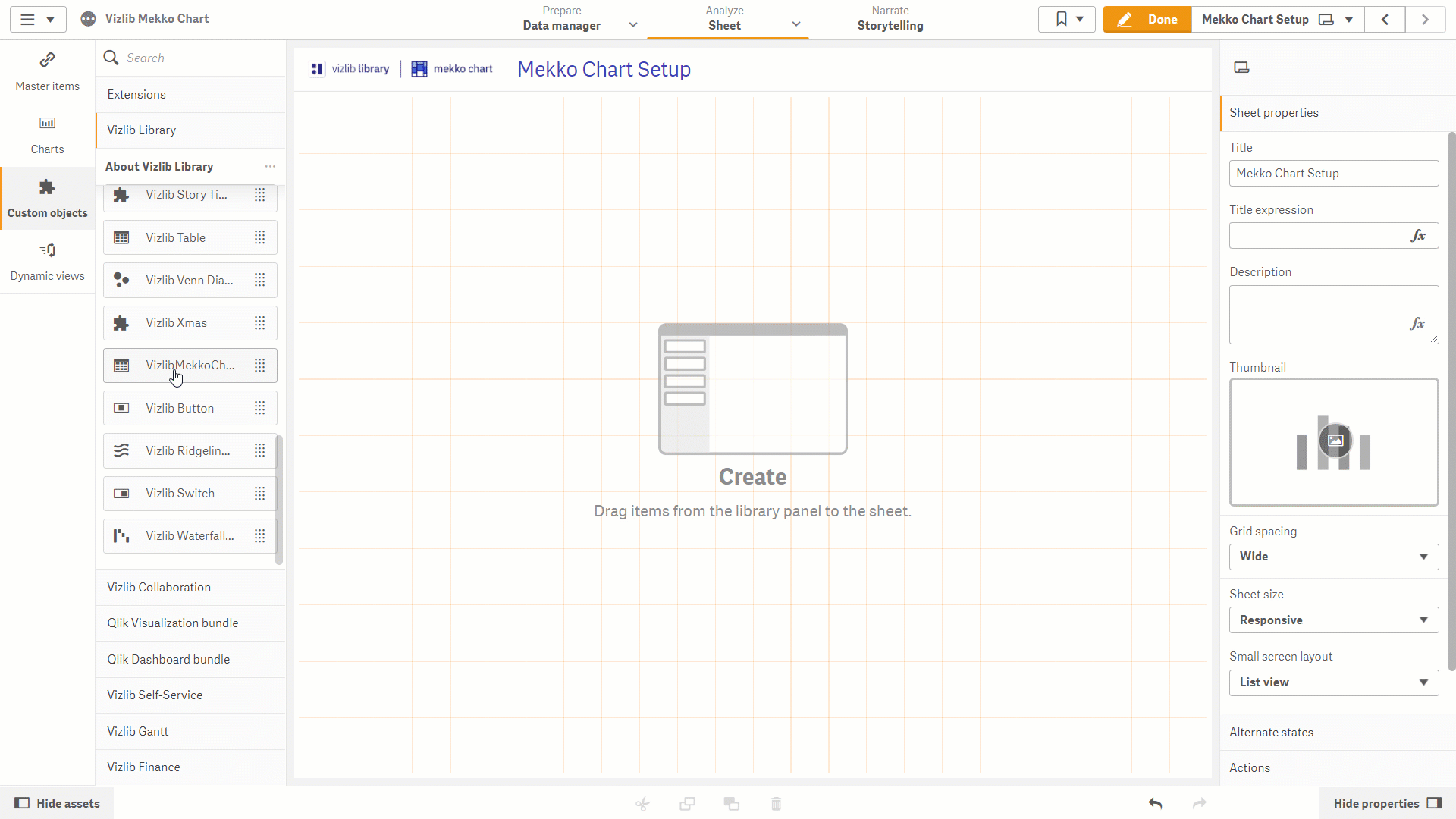

Figure 1: Setup Wizard
If you want to use the Setup Wizard, follow these instructions:
Click on Custom Objects in the far-left panel, to open the custom objects menu.
Select Vizlib Mekko Chart.
Click and hold the cursor on Vizlib Mekko Chart.
Drag and drop the cursor into the sheet.
Drag the table edge (highlighted in orange) to change the table size.
Click Add Dimension and select a value from the list. Repeat for the second dimension.
Click Add Measure and select a value from the list.
Once the measure has been selected, you should see the chart displayed in the sheet.
Click on Done to close edit mode.
Edit Setup Properties
Once you've finished setup, you can edit the Mekko Chart settings in the property panel.
Figure 2: Property Panel
