Properties - Lists
This topic contains the following sections:
List Types
Choose between five different list types when entering data in your Vizlib Selection Bar as a new list item:
- Field - Standard horizontal selection from any field in the application. Intended for use with Year/Month field but will of course work with any field.
- Variable - For variable selection of single ("always one selected") variable. Typical use is for currency selection.
- Flags - Easy country selection where you don't have room for a map but want something that looks nice.

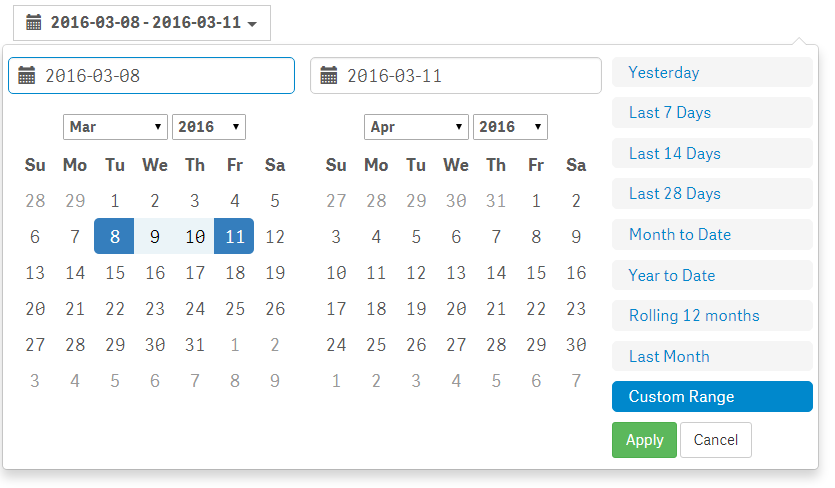

- Date range picker - Drop down calendar for selection of dates.
- Button - Click element, enables copying a section, exporting or redirecting with a link.
Field
Flags
Flags are translated from country names or ISO-codes. The application attached to the documentation shows an example and in the Excel-file is a list of all supported countries.
Variable
Button
Date Range Picker
Initial Selections
For each list item, there is the option to create an initial selection. For fields that have a numeric representation, that is the value that has to be used (this goes both for only numeric and for dual value fields).
To add multiple text selections use a string like this: ='Finland,Netherlands,United Kingdom'
The initial selection can be activated either each time a sheet is opened or only once per session (take care if you use initial selections in multiple lists and/or on different sheets since each one will be executed unless you are reusing the same master item).
