UI/UX Actions

Vizlib UI/UX Actions provide the user with a simple way to interact with their Qlik Sheet and Applications to help with navigation.

Note: You can use variables to make the fields dynamic within any of these examples, excluding Logout.

This topic contains the following sections:

• Logout
• Open URL
• Prompt
• Sleep

Logout

The Logout action (Figure 1.2) is found within the Vizlib Sheet Menu Plus and its use is described below.

• Logout
  • Logs the user out of your Qlik Sense Enterprise/Cloud environment.

Figure 1.1: Vizlib Action | Logout

Figure 1.2: Vizlib Action | Open URL

Open URL

Opens a URL (Figure 2.2) that must be used to link to any resources outside your Qlik Sense or SaaS/Cloud environment.

• URL
  • The link must contain the identified protocol, e.g., https://, http://, ftp://, sftp://.
  • You can use expressions in this input field.
• Open in the same window
  • Unchecked (False) - Opens the URL in another tab within your browser.
  • Checked (True) - Opens the URL in the current tab (the tab you are currently using for Qlik)

Figure 2.1: Vizlib Action | Open URL

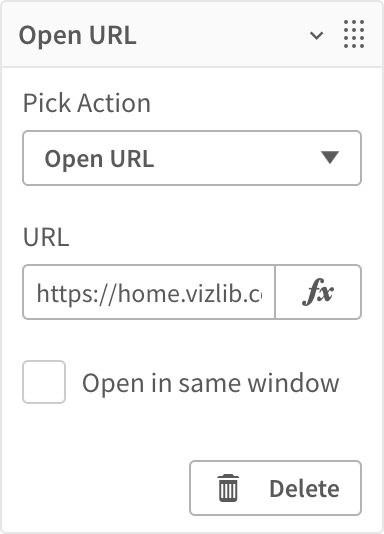

Figure 2.2: Vizlib Action | Open URL

Prompt

The Prompt (Figure 3.2) is used to set properties for instructions contained in a pop-up.

You can choose the popup type (Info, Error, Success), and set the popup title and description.

• Popup type
  • Info
    • Blue information pop-up.
  • Success
    • Green information pop-up.
  • Error
    • Red information pop-up.
• Popup Title
  • The title of the pop-up.
  • Can be a dynamic title, for example.
    • =if(Field = Value, '<Title1>', '<Title2>')
• Popup Description
  • The description of the pop-up.
  • Can be a dynamic title, for example.
    • =if(Field = Value, '<Description1>', '<Description2>')

Figure 3.1: Vizlib Action | Prompt with Info prompt

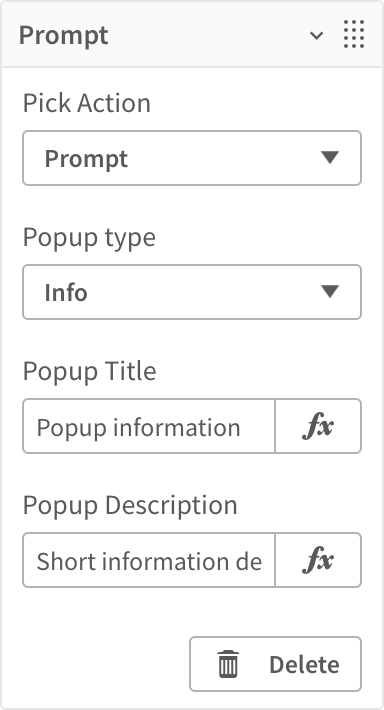

Figure 3.2: Vizlib Action | Prompt

Sleep

Sleep (Figure 4.2) provides the user with time between actions.

• Delay in milliseconds
  • This is the time between the step before and after the Sleep Action.
  • for context:
    • 100ms = 1/10 second
    • 500ms = 1/2 second
    • 1000ms = 1 second

In the example, Figure 4.2, the user presses the Vizlib Button, and the following actions happen:

• Prompt
  • Info
• Sleep
  • Delay of 750ms
• Selection in Field
  • Alphabet = A -> M
• Sleep
  • Delay of 1000ms
• Prompt
  • Success

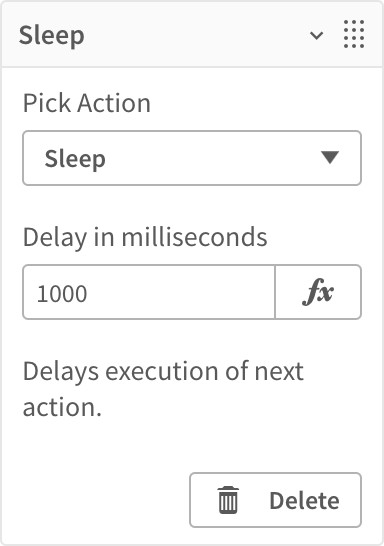

Figure 4.1: Vizlib Action | Sleep

Figure 4.2: Vizlib Action | Sleep
