Vizlib Writeback Table Guides - Pasting Data Values
With Vizlib Writeback Table you can paste one (or more) values into the table from a spreadsheet, or even a separate system, quickly adding them - in bulk - as data inputs.
This topic contains the following sections:
Guidelines and Errors
If you need to paste any data into a table, there are some guidelines for you to follow.
Pasting should only be attempted in editable cells.
Use the CTRL+V command to paste data you've saved on the clipboard.
Click on an editable cell to focus the cursor.
Select Single Cell or Multi Cell pasting.
Data is pasted into the focused cell, and the cells to the right (if you are trying to paste more than one column).
Pasting multiple rows from a spreadsheet (e.g. Microsoft Excel) is supported.
Pasting can also be done using the Context menu.
An error will be returned if
There are no cells to the right to accept the pasted values.
The pasted values do not meet any validation requirements for the cell.
Single Cell and Multi Cell
If you try to paste some data from the clipboard into a writeback table cell which has multiple rows supported (see the Customization article here), a pop-up dialog will open which asks you to choose between single cell and multi cell paste operations (Figure 1).

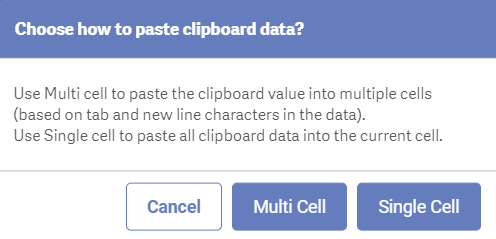

Figure 1: Paste Options
Multi Cell will paste data into multiple cells (you can see an example using the first four table rows in Figure 2).
Figure 2: Multi Cell Example
Single Cell will paste multiple rows into a single cell (Figure 3 shows an example).
Figure 3: Single Cell Example
Multiple Columns
This example shows how to paste an Excel table of 2 rows and 4 columns from the clipboard.
| Q1 | 1.53 |
| Q2 | 2.28 |
| Q3 | 1.72 |
| Q4 | 3.15 |
Select the focused cell in the table (Figure 4).

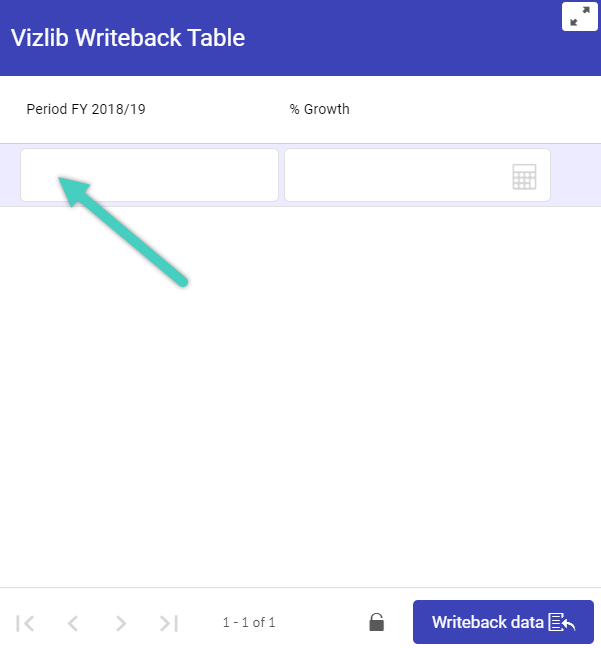

Figure 4: Focused Cell in Table
Use CTRL +V to paste the values into the focused cell and the column to the right (Figure 5).

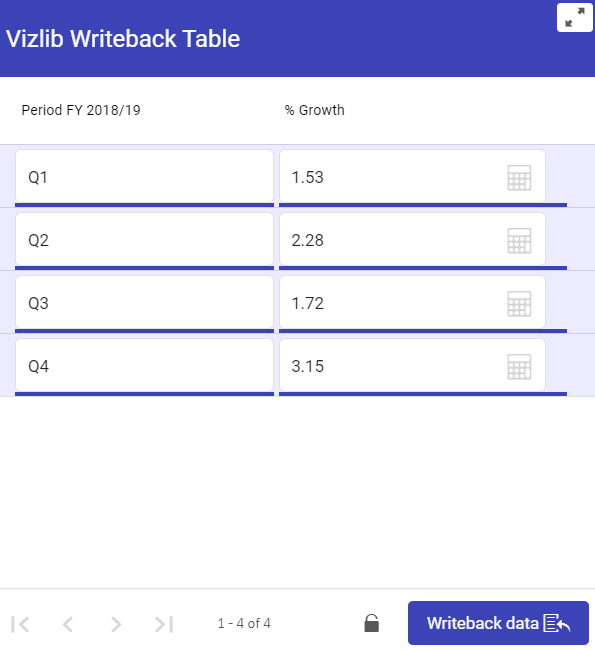

Figure 5: Paste Completed
